Satellite Tracker SmartOne C
$287.00
- Overview
- Specifications - SmartOne C GPS Device
- SmartOne C Satellite GPS Tracker Accessories
- Downloads
-
Satellite Asset Tracker Anti-Theft Device
SmartOne C is a satellite-managed asset-ready tracker designed for the intelligent management of fixed and mobile assets.
The SmartOne C is a practical solution for a multitude of options, including:
- Up to 12 different reporting times
- Interval or 24-hour operation mode
- Alternate reporting schedules
- Low battery message
Use the SmartOne C to track intermediate bulk containers, vehicles, boats, and trailers, improving your assets' operating efficiency and security.
The device can be line-powered, or the SmartOne C will automatically switch to battery backup in the absence or interruption of external power. When using line power, the user has maximum flexibility in messaging frequency, allowing for regular monitoring of asset location.
The SmartOne C utilises motion sensors, comparative GPS positions, and custom-configured sensors to gather and transmit asset status information. Each SmartOne C is adjusted to track your assets' needs and provide intermediate and emergency alerts by email or text.
Messaging
Staff Tip: Your tracking device can only operate with a messaging plan. Keep Track offers different plans to suit your needs.STANDARD MESSAGING MODE
In Standard Messaging Mode, the SmartOne C reports its GPS position at regular intervals programmed during the initial configuration process. Reporting intervals can be programmed in 1-minute intervals from 35 minutes up to 45 days, and messages will be transmitted regardless of whether the asset is moving or stationary.
Alternatively, the device can be configured to send messages only when the asset is in motion, with messages transmitted as little as every 5 minutes.
REDUCED MESSAGING MODE
Reduced Messaging Mode reduces the cost of transmitting messages over the Globalstar satellite network by sending messages at a minimal message interval when the asset is stationary or in a defined area and transmitting at a higher message interval when the asset moves or changes locations.
THEFT RECOVERY/GEOFENCING MODE
The theft recovery mode allows you to configure the device to differentiate between authorised and unauthorised movements of an asset. While the asset remains in an authorised state, the SmartOne C will send out infrequent messages. Suppose the SmartOne C detects an unauthorised state, such as movement out of a predefined area. In that case, it can be programmed to send out high-frequency messages to enable the unauthorised movement to be monitored.
GEOFENCING
The SmartOne satellite asset tracker offers a geo-fencing feature. This feature enables you to predefine a set of geographic boundaries and receive email notifications when the device enters or exits the geo-fenced area.
Features
- Up to 12 different reporting times
- Interval or 24-hour operation mode
- Alternate reporting schedules
- Low battery message
- Quick installation: Use industrial adhesives, brackets, or screw mounts for installation
- Operates on 5V external line power, 8-22V regulator cable, or (4) AAA Lithium Batteries
- Automatic alerts: Change of location sensing sends alerts if an asset moves outside of the pre-determined range
- Messaging reduction mode: Reduces satellite messaging if the asset remains in the exact location for a pre-determined period
- Hardware on/off feature: Allows the unit to initiate GPS re-centering functionality
- Satellite technology: Global LEO Satellite operation using the Globalstar Simplex Data Network
Download The Keep Track GPS Telematics App for IOS or Android!
FAQ SmartOne C Satellite GPS Tracker
- ▼Is the SmartOne C Tracker waterproof?
- YES, The SmartOneC is IP68-rated.
- ◄Is the monthly fee charged per unit?
- Yes Their is a monthly fee. Please see SmartOne Satellite Tracker Airtime. We also offer month-to-month plans; please get in touch with us for details. There is also a connection fee of $45.00 for activating the SmartOne C device and a reactivation fee every time you turn it back on.
- ◄Does it have a low battery alert?
- Yes it dose have a low battery alert
- ◄Can i hardwire the device to my Caravan, Truck or Trailer
- Yes you can buy the Combined Serial, 8-24V Dry Contact Input Cable, I/O Cable from Keep Track GPS
- ◄Can the SmartOne C be programmed over the air?
- NO: The SmartOne C will require the device to be returned and reprogrammed. Please get in touch with us for details.
- ◄What is the Battery Life of the SmartOne C?
- The Estimated Battery Life of the SmartOne C
1 Locate Per Day - 2.5 years
2 Locates Per Day - 500 Days
3 Locates Per Day - 400 Days
6 Locates Per Day - 200 Days
24 Locates Per Day - 80 Days
-
Specifications
Specifications Value Model SMARTONE C Manufacturer GLOBALSTAR Type GPS TRACKER Dimensions 6.86 x 8.26 x 2.54cm with brackets Weight 102g with 4 batteries and mounting hardware Operating Temperature -30 to 60°C NOTE: The unit shall remain operational over the -40 to 85°C range, though it may experience battery life and RF signal degradation. Line Power 5V DC or 8-22V DC with regulator cable Battery Type 4 AAA 1.5V lithium (provides 1.5+ years of life) Certifications ANATEL Certification for Brazil (pending)
FCC CFR Parts 15 and 25
Industry Canada
CE Mark (European Certification)
COFETEL (pending)Satellite Technology Global LEO Satellite operation using the Globalstar Simplex Data Network Estimated Battery Life Expectancy 01 Location Per Day (2.5 years)
02 locations Per Day (500 days)
03 locations Per Day (400 days)
06 Locations Per Day (200 Days)
24 Locations Per Day (80 Days) -
Accessories
- Combined Serial, 8-24V Dry Contact Input Cable, I/O Cable (Sold Separately)
- Combined Serial, 5v LP, I/O Cable (Sold Separately)
- USB Configuration Cable (Sold Separately)

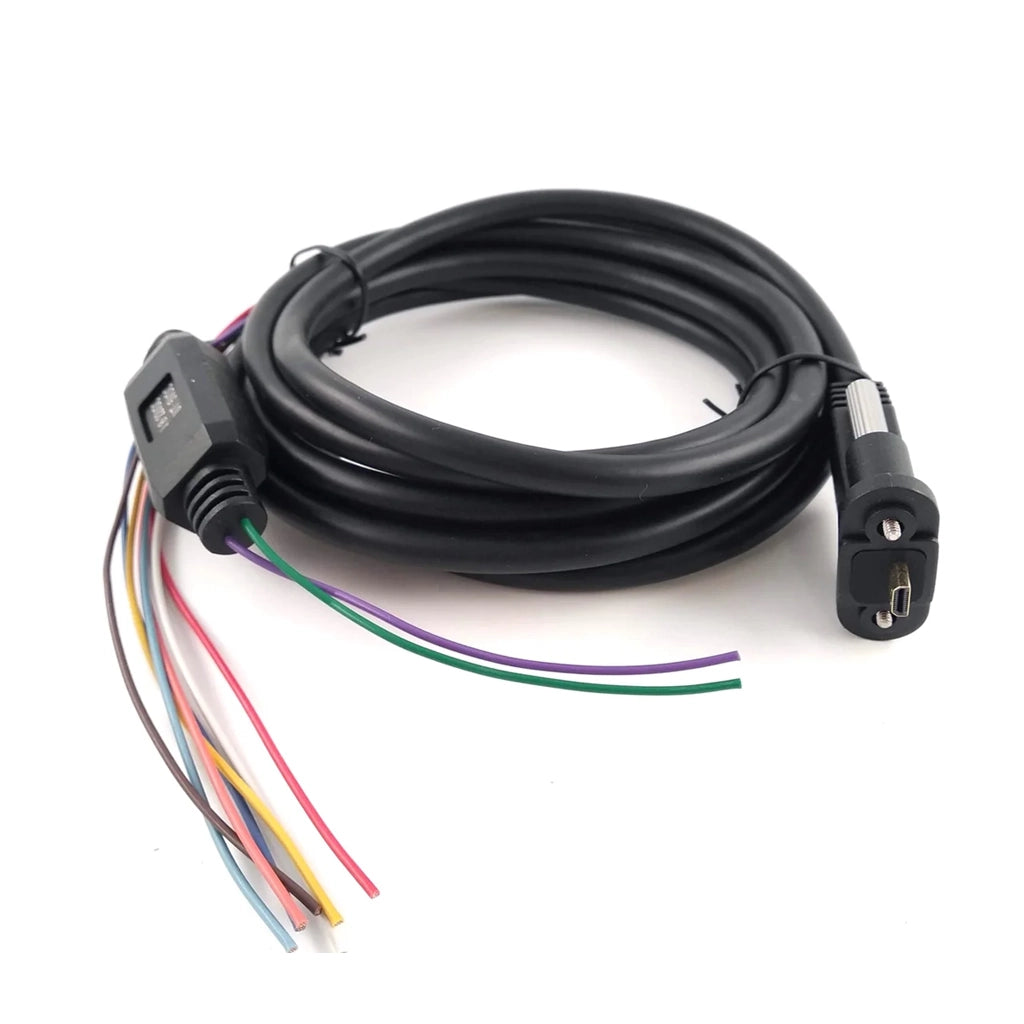

An optional power cable allows you to hardwire the SmartOneC to any 12 VDC power source, like a vehicle, truck, or powered asset with 8–22 VDC. When used with this power cable, if power is ever lost, it will revert to the internal batteries as a backup power source.
-
Download the SmartOne C Data Sheet
