Keep Track GPS Manta Portable GPS Tracker
$265.00
-
Manta Fusion Battery-Powered GPS Tracker
This high-performance, high-precision Indoor/Outdoor GPS asset tracking device with a Bluetooth® Gateway. It features cloud-based location solving and has a battery life of 10+ years once daily location.
The Manta Fusion is a cutting-edge, battery-powered GPS tracker with GNSS and Wi-Fi scanning modules. The Mantra Fusion provides accuracy, indoors or outdoors, designed to keep your assets connected and secure, no matter where they are.
Unmatched Location Accuracy
The Manta Fusion combines multiple tracking technologies to provide precise location data:
- True GNSS Module: Ensures accurate outdoor positioning.
- Wi-Fi Scanning: Delivers reliable indoor location tracking.
- Cell Tower Location Fallback: Maintains connectivity even when other signals are weak or unavailable.
Key Benefits:
- Duel Locating Technology: GPS, GLONASS, Galileo, BeiDou, QZSS with Wi-Fi scanning for Indoor and outdoor locations, with cell tower backup.
- Bluetooth Gateway: Connect BLE sensors for asset management
- Off-the-shelf Batteries: User-replaceable 3x Energizer lithium batteries or LTC + Battery low or critical alerts
- Periodic or Movement-based tracking: Customise for set location times or movement-based.
- Once-daily updates: - 10 Years (Once daily location)
- Movement Based Updates: - 5 Years
- Hourly updates: - 4 Years
Flexible Monitoring Options
Customise your tracking experience by prioritising the location technology best suited to your needs, ensuring optimal performance.
The Manta Fusion is ideal for businesses seeking reliable, long-lasting, and precise asset tracking. Its long-lasting battery and cutting-edge features make it perfect for trailers, caravans, rental equipment, unpowered assets or even basic vehicle tracking.
Rugged and Discreet Design

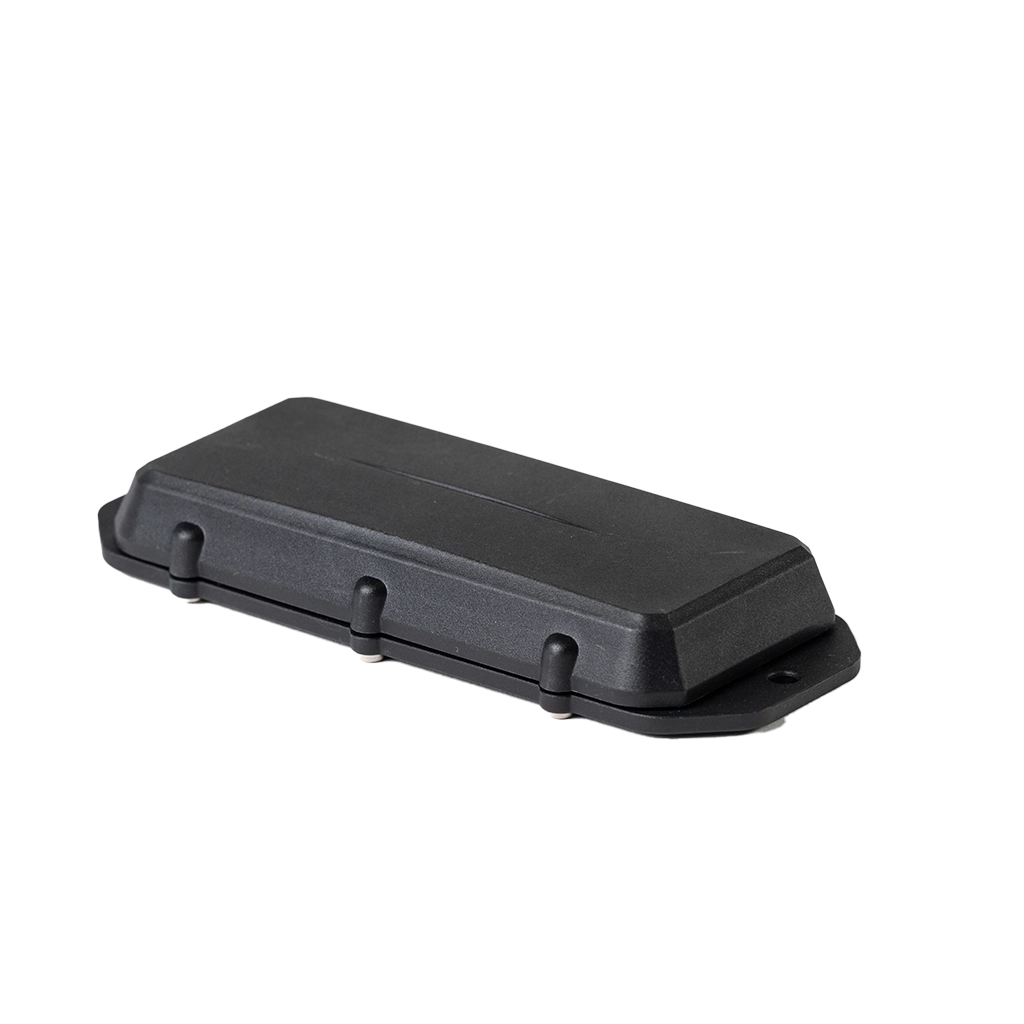

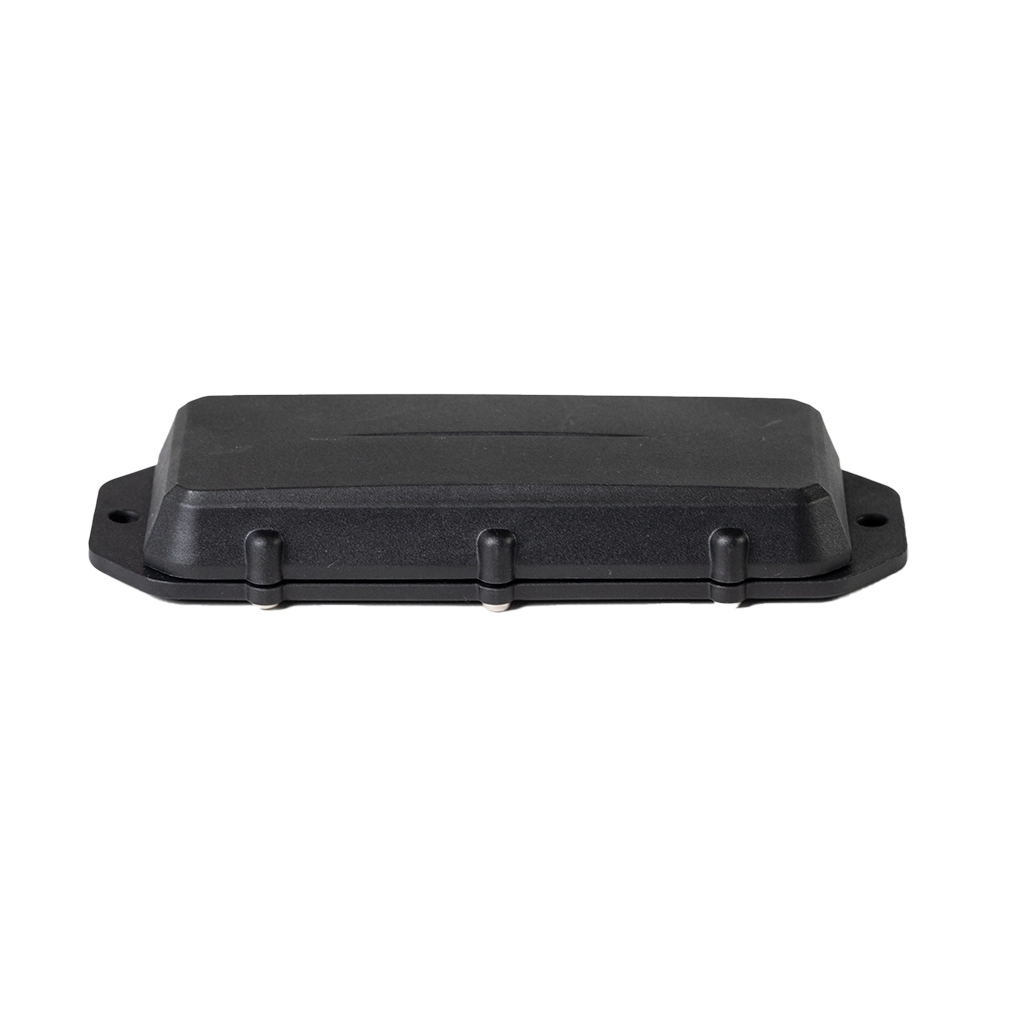

The low-profile form factor allows for discreet installation, while the IP68-rated nylon glass housing provides exceptional protection against environmental challenges.
Integrated Bluetooth Gateway
With built-in Bluetooth 5.2, the Manta Fusion is a hub for various BLE tags and sensors, enhancing its versatility across different applications.
Use Cases & Applications
- Temperature monitoring, add external sensors
- Equipment location and theft recovery
- Civil and Mining assets
- Hire equipment: pumps, generators, lighting plants
- Containers and Freight
- Agriculture and farming equipment
-
Mantra Fusion Specifications
CONNECTIVITY
Cellular Nordic nRF9160 Modem operates on all major global LTE-M and NB-IoT bands.
Supported LTE bands:
LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28,B66
NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28,B66Bluetooth® Bluetooth 5.2 gateway reports nearby Bluetooth tags and sensors for affordable tagged asset management and sensor monitoring. SIM Size and Access Internal Nano 4FF SIM Location
GNSS (Outdoors)
GNSS Module Sony CXD5612 Constellations Concurrent GPS, GLONASS, Galileo, BeiDou, QZSS GNSS Assistance GNSS almanac data for greater sensitivity and position accuracy Low Noise Amplifier GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA), allowing operation where other units fail. Cell Tower Location Cell tower fallback for positioning when there is no GNSS or Wi-Fi signal. Location Accuracy* GNSS: ~1m CEP
Cell Tower Fallback: ~250m-1km. Dependent on the number of nearby towers.
Wi-Fi Scanning (Indoors)
Secondary Module Semtech LR1110 Wi-Fi Positioning Indoor asset location using Wi-Fi access point scanning (device does not connect to Wi-Fi). Cloud-Based Solver Asset location is calculated in Digital Matter’s Location Engine. Location Accuracy* Wi-Fi Scanning: ~10m-100m with Wi-Fi in urban areas
* Positioning accuracy specifications are provided by the GNSS module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
Power

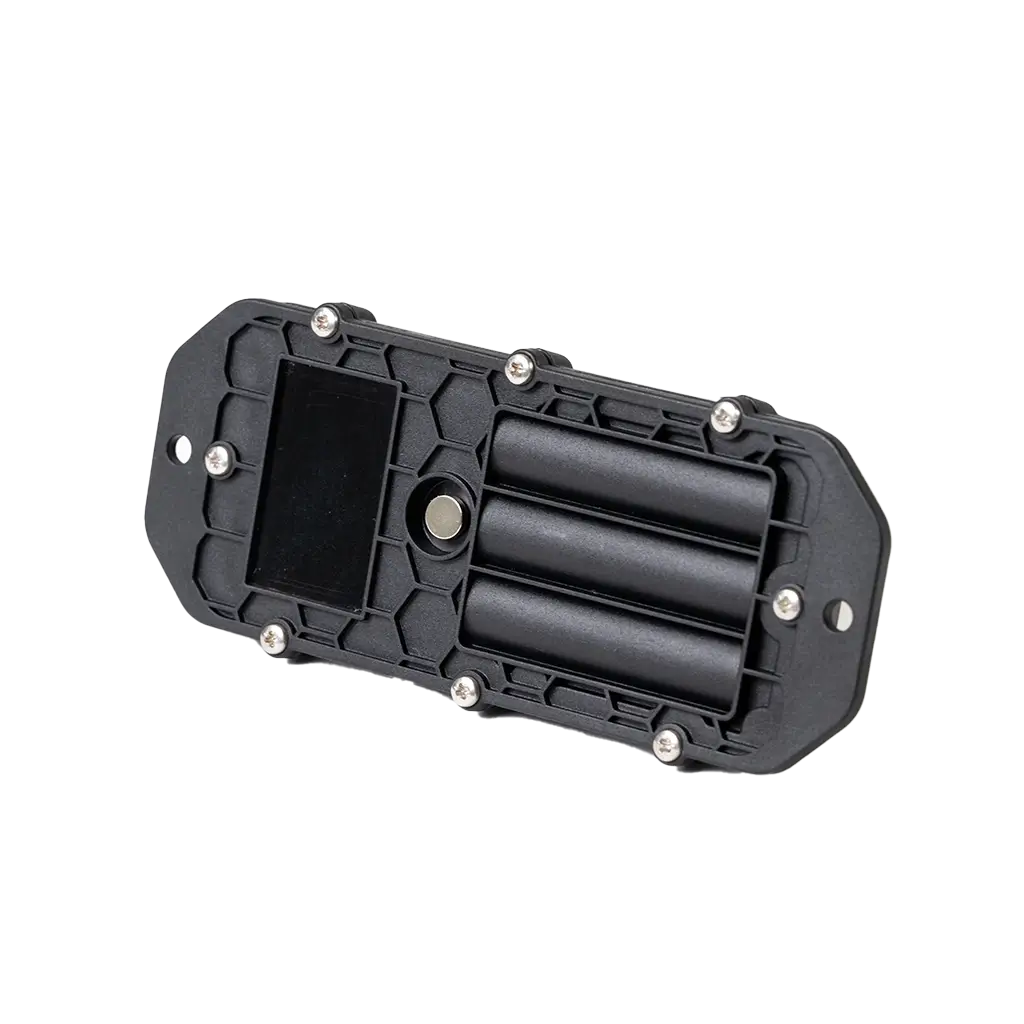

User-Replaceable Batteries 3 x AA. Batteries are not included. Widely available at most hardware or retail locations. Supported Battery Types Lithium or Lithium Thionyl Chloride (LTC)
Battery selection is very important. Please dispose of Lithium batteries in a safe and responsible manner.Battery Life Estimates* “Once Daily location updates – 10+ years
Movement-Based location updates** – 5+ years
Hourly location updates – 4+ years”Sleep Current <10uA Average current in lowest power state.
“* Battery life estimates are influenced by several factors, including temperature, installation and orientation of the device, battery selection, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more. Battery life calculators are available on request.
** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default trip tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion, which will impact battery life.”
Mechanics / Design
Dimensions 154 x 66 x 21 mm Device Weight 170 g with Energizer Ultimate Lithium Batteries Housing Non-branded nylon glass housing IP/IK Rating Ultra-rugged and waterproof housing ensures the device can withstand impact, fine dust, and brief submersion. Installation Compact and concealable. Multiple installation options for covertly and quickly securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided. External Magnet Removal of the magnet enables quick activation and tamper detection. Temperature Range Operating: -30°C to +60°C Recommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place. Cellular Antenna Internal GPS Antenna Internal Wi-Fi Antenna Internal 3-Axis Accelerometer 3-Axis Accelerometer to detect movement, high G-force events, and more. Diagnostic LED Diagnostic LED indicates operation status. Flash Memory Store weeks of records if the device is out of cellular coverage. Onboard Speed and Heading Current speed and heading are reported with each position update. Onboard Temperature It Provides ambient temperature but may not be suitable for precise temperature logging. Smarts
Adaptive Tracking Configure parameters to send updates based on set time intervals or when movement occurs.
Adaptive tracking technology detects when the device is moving and increases the update rate,
providing details when you need it while conserving the battery when stationary.Battery Life Monitoring ‘Battery Low’ and ‘Battery Critical’ alert levels Geofence Alerts The server can use device location to create geofences and alerts if an asset enters or leaves designated locations. Geofences can also be downloaded directly to the device for enhanced location-based actions and alerts. Impact Detection Configure impact-detection alerts when a user-defined threshold exceeds G-forces. Magnetic Activation A magnetic switch can activate the unit, meaning SIM cards and batteries can be pre-installed, simplifying deployment. Rotation Counting Keeps a count of the number of rotations of the device Run Hour Monitoring Capture run hours based on movement to understand and optimise asset utilisation. Sleep Mode Stationary devices enter sleep mode until movement occurs to conserve battery life and optimise data usage. Tamper Detection External magnet provides an alert if the device is removed from your asset Theft Recovery Switch to Recovery Mode for theft or loss to activate real-time tracking for asset retrieval. Tip Detection Define a range of angles constituting a ‘tipped’ state and configure alerts. Security Data
Data Security Military-level AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security. Manufacturer's Warranty
Manufacturer’s Warranty Two-year manufacturer’s warranty. -
