Keep Track Remora3 Global GPS Tracker
$447.00
-
Battery-Powered GPS Tracking Device
Remora 3 Global uses 4G Cat 1bis / 2G networks and has a long-life and ultra-rugged battery-powered GPS. It also boasts a Bluetooth® gateway for global asset tracking and condition monitoring applications.
The Remora Global

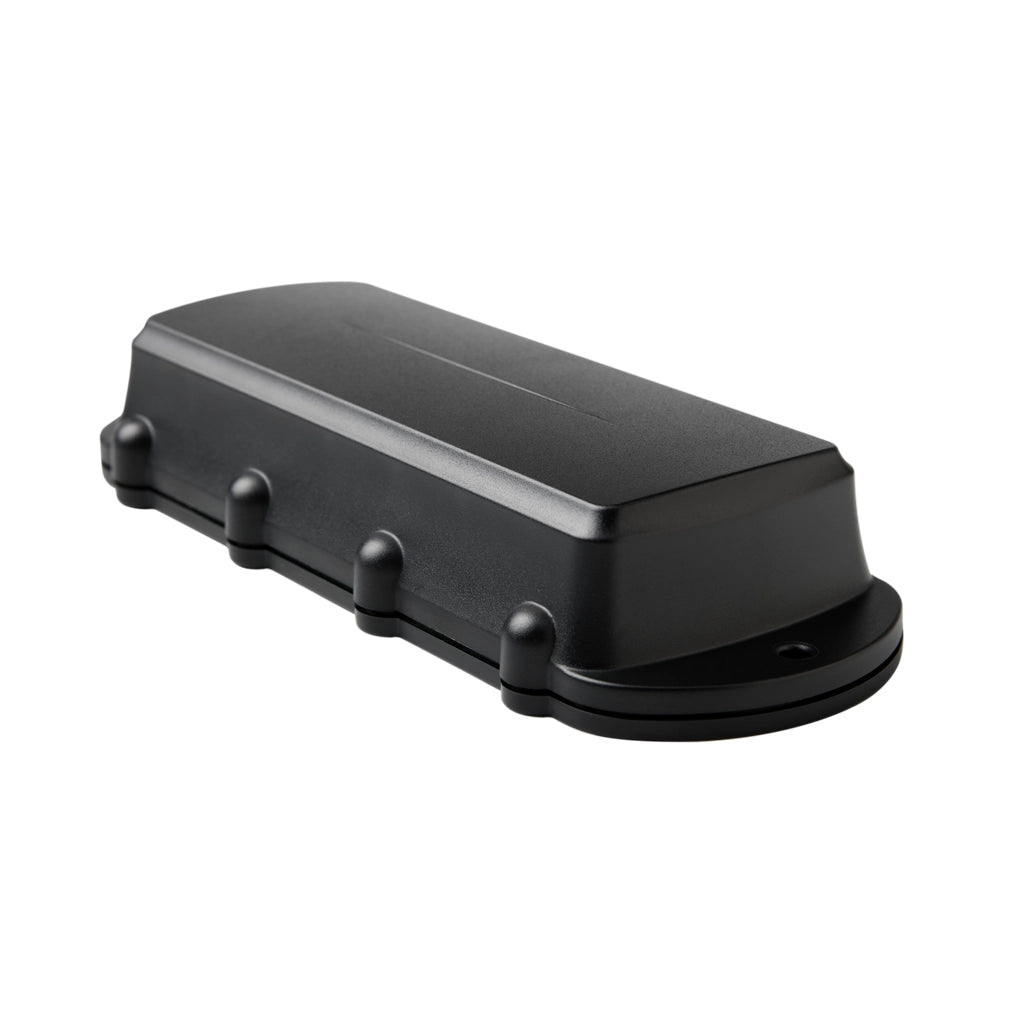

IP68 weatherproof housing. Convenient mounting holes make it easy to mount the Remora Global in the grooves of a shipping container or high-value cargo for international shipments.
Global Asset Tracking Battery-Powered GPS Tracker
The Remora Global GPS tracker uses the latest GPS technology and can operate in ultra-low-power modes. With an incredible battery life of up to 10 years when set at one daily Location update and 5 years of once-hourly updates, the Remora Global can attach to your assets for real-time tracking, hide your GPS tracker anywhere, and track It 24/7 with our asset tracking software without recharging batteries.

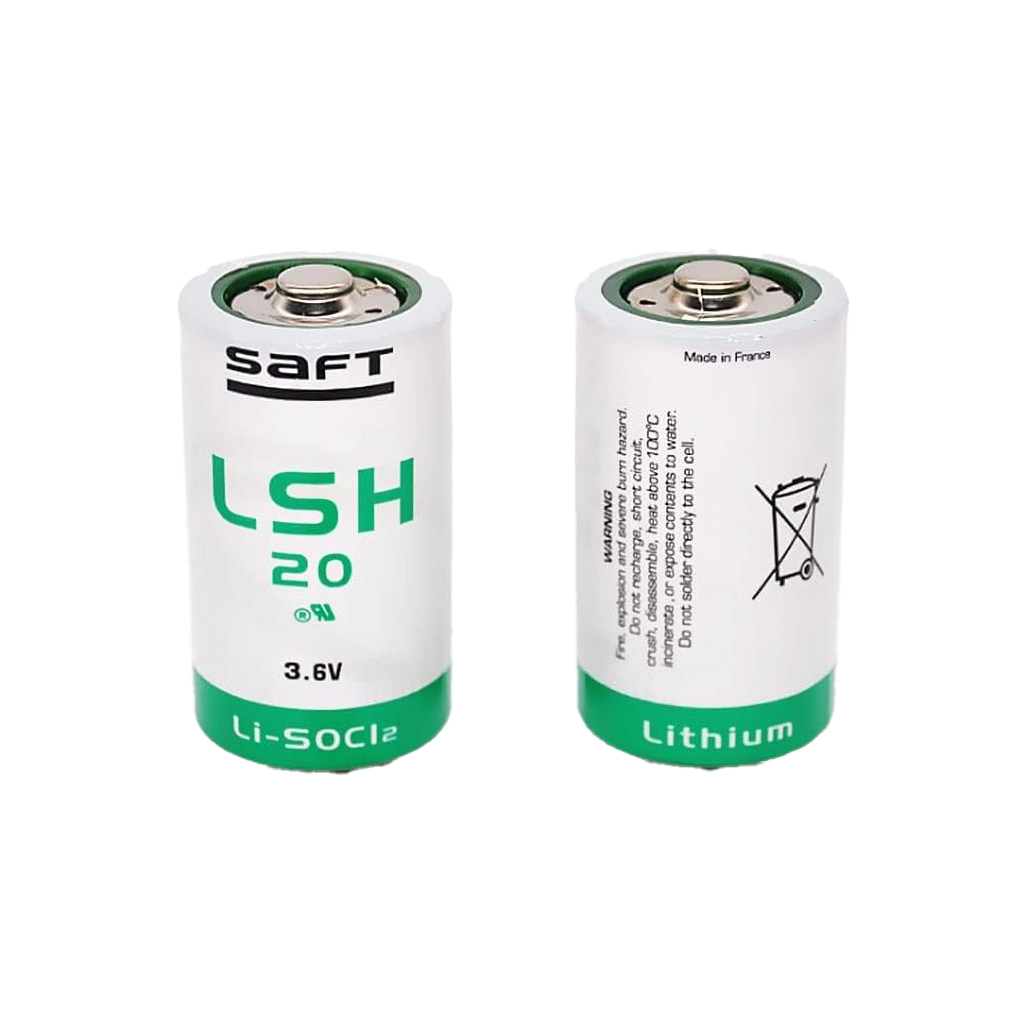

The Remora Global GPS locator is powered by 2 x Saft LSH20 3.6V 13AH specialised Lithium batteries or Fanso D size 3.6V 14000Ah lithium thionyl chloride batteries for super-long battery life. LTC batteries also offer continued operation in extreme temperatures that other tracking devices cannot.
Turn-by-turn tracking allows the user to track an asset more accurately when on a trip.
Distance interval: When 500m is travelled or
Heading Change: When the direction is changed by 60° over a short distance (250m, short bend)
when the direction changes by 20° over a long distance (250m; long change for more gradual, sweeping bends).
Features
- Deploy-once battery life with up to 10 years on only 2 x LTC D Cell user-replaceable batteries.
- For second-by-second tracking applications, no more than two years
- Powered by off-the-shelf Saft LH20 D size 3.6V 13Ah Lithium Thionyl Chloride Batteries for extreme temperature operation
- 4G LTE Cat1bis 2G Connectivity
- No installation is required; simply “place ‘n trace.”
- Weatherproof and ultra-rugged IP68 and IK07 housing
- Tracks assets when they’re on the move and enters sleep mode when stationary to conserve power
- Battery metre with ‘Battery Low’ and ‘Battery Critical’ alerts
- Bluetooth® 5.2 Gateway for tagged asset management and sensor monitoring
- Accelerometer for Smart Movement-Based Tracking
- Magnetic tamper detection
- 222 x 91 x 41 mm (8.74 x 3.58 x 1.61”)
Applications
- Add IoT Sensors: Temperature, Humidity and Door Sensors
- Trailer Tracking
- Global Container Tracking System
- Unpowered Mobile Assets
- Construction Equipment Tracker
- Shipping Containers - Container tracking
- Freight and Logistics
- Anti-Theft GPS Tracker for Global Assets
- Earthmoving, Mining Equipment, Parts
Download The Keep Track GPS Telematics App for IOS or Android!
-
Specifications Remora Global GPS Tracker
CONNECTIVITY
Cellular Module Ublox LENA R8 Modem operates on all major global 4G Cat 1bis and 2G bands
Supported 4G Cat 1bis bands: B1, B2, B3, B4, B5, B7, B8, B12, B20, B28, B38, B40, B41, B66Bluetooth® 5.2 Gateway Bluetooth 5.2 gateway reports nearby Bluetooth tags and sensors for affordable tagged asset management and sensor monitoring Location
GNSS Module Ublox LENA-R8001M10 Constellation Concurrent GPS/QZSS, GLONASS, Galileo, BeiDou Tracking Sensitivity -148 dBm cold start / -159 dBm hot start *Location Accuracy ~1m 2D RMS, GPS, -130dBm GNSS Assistance GNSS almanac and ephemeris data for greater sensitivity and position accuracy Low Noise Amplifier GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA), allowing operation where other units fail Cell Tower Location Cell tower location fallback for positioning when GPS can’t get a fix * Positioning accuracy specifications are provided by the GNSS supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
Power
Input Voltage 5-16V DC sleep current <10uA*
*Average current in lowest power configurationSafety Reverse Polarity Protection and Fuse Protection Batteries
User-Replaceable Batteries 2 x D Cell (3.7V per cell). Batteries are not included. Supported Battery Types Lithium (LiFeS2) or Lithium Thionyl Chloride (LTC)
*Please dispose of Lithium batteries safely and responsibly*Battery Life Estimates Once Daily location updates – 10 years
**Movement-Based location updates – 9 years
Hourly location updates – up to 7 years* Battery life estimates are influenced by several factors, including temperature, installation and orientation of the device, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more.
** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion.
Mechanics / Design
Dimensions 224 x 91 x 41 mm Weight 430g IP/IK Rating Ultra-rugged and waterproof IP68 ensures the device can withstand impact, fine dust, and brief submersion. Installation Compact and concealable. Multiple installation options for covertly and quickly securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided. Operating Temperature -30°C to +60°C- For operation in extreme temperatures, use LTC Batteries Cellular Antenna Internal GPS Antenna Internal 3-Axis Accelerometer 3-Axis Accelerometer to detect movement, high G-force events, and more Diagnostic LED Diagnostic LED indicates the operation status Flash Memory Store weeks of records if the device is out of cellular coverage. Storage capacity for over 28 days of continuous 30-second logging. Onboard Speed and Heading Current speed and heading is reported with each position update Onboard Temperature The device reports internal temperature, which indicates ambient temperature but may not always be precise. Smarts
Adaptive Tracking Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is moving and increases the update rate, providing details when you need them while conserving battery energy when stationary. Battery Life Monitoring Battery Low” and “Battery Critical” alert levels Geofence Alerts The server can use device location to create geofences and alerts if an asset enters or leaves designated locations. Onboard Geofencing Geofences can be downloaded directly to the device for enhanced location-based actions and alerts. Impact Detection Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold Rotation Counting Keeps a count of the number of rotations of the device about the Z axis Run Hour Monitoring Capture run hours based on movement to understand and optimise asset utilisation. Sleep Mode Stationary devices enter sleep mode until movement occurs to conserve battery life and optimise data usage. Tamper Alerts A magnetic tamper switch provides an instant alert if the device is removed from your asset. Theft Recovery Switch to Recovery Mode for theft or loss to activate real-time tracking for asset retrieval. Tip Detection Define a range of angles that constitutes a ‘tipped’ state and configure alerts. Security Data
Data Security Military-level AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security. Manufacturer's Warranty
Manufacturer’s Warranty Two-year manufacturer’s warranty. -
Download Remora3 Global GPS Tracker Data Sheet
