ZOLEO Universal Mount Kit
2
$109.00$119.00
Universal Mount Kit for the ZOLEO Satellite Communicator
The ZOLEO universal mount kit is ideal for securing the ZOLEO device on the windscreen of a vehicle or vessel or any window and keeping it charged. This kit includes a complete cradle kit, a USB car charger, and a RAM® Twist-Lock™ suction cup mount for a strong hold on glass and non-porous plastic surfaces. The double-socket arm makes it easy to adjust to the desired look-angle.
The Universal Mount Kit includes:
- DC car charger
- USB cable
- Cradle
- Camera mount
- Strap infill
- Belt clip
- RAM® Twist-Lock™ Suction Cup mount
- Installation guide
Additional Specs
RAM® Mount Components
RAM Twist-Lock Suction Cup Base with Ball
- Suction Cup Dimension: 8.38 cm (3.3 in) in diameter
- Weight: 118 g (4.16 oz)
- Ball: B Size 2.54 cm (1 in) rubber ball
RAM Double Socket Arm
- Dimensions: 9.47 cm (3.73 in)
- Weight: 140.6 g (4.96 oz)
RAM Ball Adapter with ¼"-20 Threaded Stud
for Action Cameras
- Dimension: 63.5 mm (2.5 in) in diameter
- Weight: 72.57 g (2.56 oz)
- Stud: ¼”-20 threaded steel stud
- Ball: B Size 2.54 cm (1 in) rubber ball
DC Car Charger
- Single USB port for use with the included USB to Micro-USB cable
- Input Voltage: 12-24 V
- Output Voltage: 5 V
- Max Current (A): 2.5 A
USB Cable
- 1.2 m (3.9 ft) (USB to Micro-USB)
ZOLEO Cradle Kit Components (included)
Main Cradle
Secures and protects your ZOLEO device and includes a locking tab to enable easy installation or removal of all included clips/inserts.
- Dimension: 74.5 x 95.0 x 27.8 mm (2.93 x 3.74 x 1.09 in)
- Weight: 3.0 g (0.10 oz)
- Colour: Grey
Belt Clip Insert
Secures your ZOLEO device to be worn on a belt.
- Weight: 2.0 g (0.07 oz)
- Colour: Green
Strap Mount Insert
Secures your ZOLEO device flat against a backpack or other installations using a strap or tether. Simply slip the strap through the insert.
- Fits straps up to: 25 mm (1 in)
- Weight: 1.0 g (0.03 oz)
- Colour: Green
Camera Mount Insert
Secures your ZOLEO device to any universal camera mount. Ideal for use with other RAM mounts and other accessories with a camera mount.
- Weight: 1.5 g (0.05 oz)
- Thread Type: ¼"-20 UNC
- Colour: Green
Customer Reviews
3.5
Based on 2 Reviews
Customer Photos
Filter Reviews:
DJ
04/05/2022
Duane J. Australia
I recommend this product
Zoleo mount kit

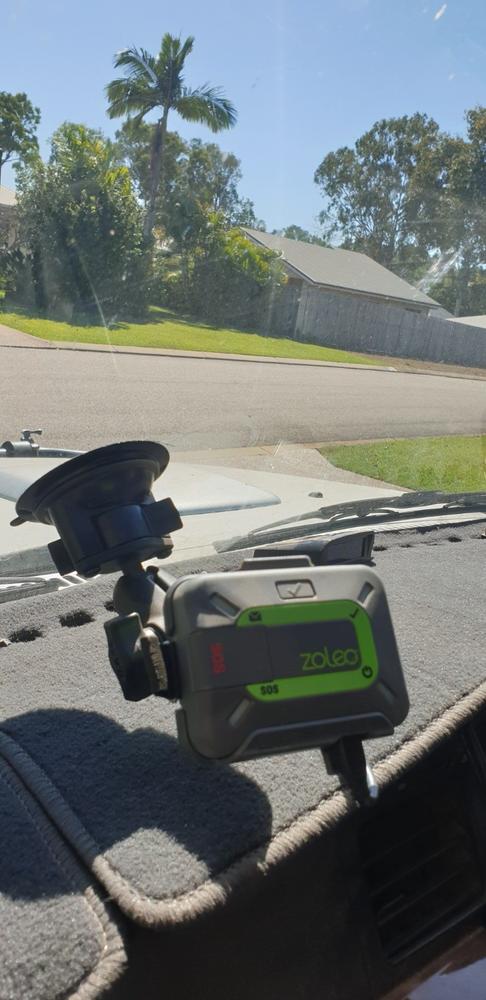

The mount worked perfectly as expected with Ram products. It survived 500+km of rough corrugated tracks to and from Steep Point and around Dirk Hartog Island without any signs of movement.
IS
08/08/2021
Ian S.
AustraliaI recommend this product
Zoleo is great but mount sucks
This mount does not stay in place in a 4wd even on lightly corrugated roads. It should be much better for the exjorbitant price. Ok on bitumen roads but the why have a Zoleo? Seriously guys, you need to talk to the manufacturers about this product.
10/08/2021
Keep Track GPS
Hi Ian thanks for the feed back on the ZOLEO Ram Mount. Sorry to hear about your experience. Ram Mounts are renowned for there quality products world wide. I have passed your feed back on to ZOLEO regarding your experience. Regards The Team @ Keep Track GPS
