Keep Track Barra Core WI-FI Location Tracker

Special Order Request

15 In Stock

barra core wifi ap mac address asset tracker

  • Barra Core Indoor/Outdoor Asset Tracker NB-IoT Networks

    NB-IoT Connectivity Only
    Size: 149 x 51 x 21 mm
    Batteries: 2 x AA Lithium Recommend

    The Barra Core Asset Tracker is a compact, ultra-rugged, battery-powered asset-tracking device that provides affordable and reliable location tracking for tools, equipment, containers, and inventory. Built for indoor and outdoor use, the Barra Core offers innovative location technology, a durable design, and advanced monitoring features — all in a cost-effective package perfect for small and medium businesses.


    Advanced Location Tracking – Indoors, Outdoors & in Rural Areas

    The Barra Core stands out by offering location tracking in environments where traditional GPS struggles, such as warehouses and indoor storage areas.

    • Wi-Fi Access Point MAC Address Scanning: When near Wi-Fi networks, the Barra Core scans nearby access points and uses this data to pinpoint its location with 5 to 10 metres of accuracy—perfect for warehouses, depots, and equipment yards.
    • Cell Tower Triangulation: In rural areas or locations without Wi-Fi coverage, the Barra Core automatically switches to Cell Tower Geolocation, providing location accuracy between 250m - 1km, depending on the number of nearby towers.
    • Seamless Indoor-to-Outdoor Tracking: This combination of Wi-Fi positioning and cellular triangulation ensures your assets remain visible, whether stored indoors or moved between sites, for indoor/outdoor asset management.

    Key Features

    • Indoor & outdoor location tracking (Wi-Fi & cellular).
    • Accurate indoor positioning (5-10m with Wi-Fi).
    • Rural coverage with cell tower triangulation (250m - 1km).
    • Tamper detection via a magnetic switch.
    • Impact detection: Senses drops and rough handling.
    • Rugged IP68 & IK07-rated enclosure:  Waterproof & impact-resistant.
    • Battery-powered: No installation is required.
    • Recovery mode for theft situations.

    Innovative Features for Complete Asset Management

    The Barra Core Asset Tracker doesn’t just track location — it also helps businesses monitor asset condition, usage, and security, providing valuable insights into operations and helping prevent loss or theft.

    • Tamper Detection: A magnetic switch detects tampering or removal, giving you immediate alerts if someone interferes with the device.
    • Usage Monitoring: Track operating hours to better understand equipment usage patterns and schedule proactive maintenance.
    • Drop & Impact Detection: Built-in sensors detect drops, impacts, and rough handling, helping monitor how assets are treated during transport and on-site.
    • Theft Recovery Mode: Activate recovery mode to increase location reporting frequency and help quickly recover stolen or lost assets.

    Ideal for Small & Medium Businesses

    With no complex installation required and battery power for flexible mounting, the Barra Core Asset Tracker is perfect for small and medium businesses looking for an affordable asset tracking solution.

    Optimised for Australian Businesses

    Designed with the challenges of Australian businesses in mind, the Barra Core performs reliably in urban, rural, and remote environments, giving you peace of mind that your assets are always visible, no matter where they are.

  • Keep Track Barra Core, WI-FI Tracker Specifications


    CONNECTIVITY

    Cellular Module The Quectel BC660K-GL is a high-performance NB-IoT (NB2) module that supports multiple frequency bands.
    B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B28/B66/B70/B85
    SIM Size & Access Internal Nano 4FF SIM

    Location

    Chipset Semtech LR1110
    Environment Indoor/Outdoor
    Wi-Fi Location Scanning Indoor asset location using Wi-Fi access point scanning
    Cell Tower Location Cell tower fallback for positioning when there is no Wi-Fi signal
    Cloud-Based Solver Asset location is calculated in Digital Matter’s Location Engine
    *Location Accuracy ~10m-100m with Wi-Fi in urban areas ~250m-1km Cell Tower Geolocation - dependent on the number of nearby towers
    Results vary depending on real world conditions

    *Results vary based on real world conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.

    Power

    Input Voltage 2.2 - 3.8V
    Sleep Current <10uA*
    *Average current in lowest power configuration

    Batteries

    User-Replaceable Batteries 2 x AA. Batteries are not included.
    Supported Battery Types Alkaline
    Lithium (LiFeS2) – recommended for best performance
    *Please dispose of Lithium batteries in a safe and responsible manner
    *Battery Life Estimates Once Daily location updates – 10 years
    **Movement-based location updates – 4.5 years
    Hourly location updates – 3 years

    * Several factors, including temperature, installation and orientation of the device, the frequency of location updates, network coverage, sensor integrations, peripherals, and accelerometer settings, influence battery life estimates.
    ** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion.

    Mechanics/Design

    Dimensions 149 x 51 x 21 mm

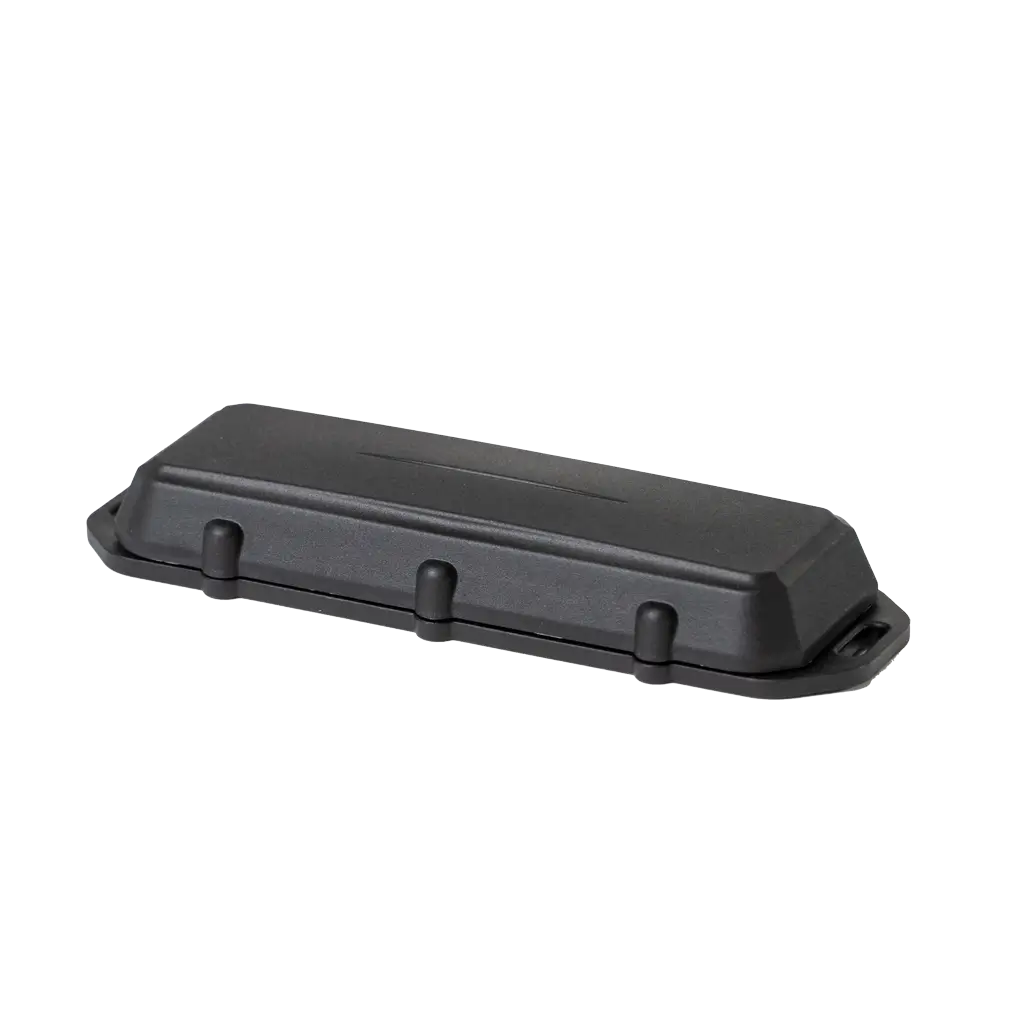

    IP/IK Rating The Barra's ultra-rugged, waterproof, IP68, and IK07-rated housing ensures it can withstand impact, fine dust, and brief submersion.
    Installation Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.
    Magnetic Switch Magnetic switch enables quick activation and tamper detection
    Operating Temperature -30°C to +60°C
    Cellular Antenna Internal
    Wi-Fi Antenna Internal
    3-Axis Accelerometer 3-Axis accelerometer to detect Movement and High-G events
    Diagnostic LED Diagnostic LED indicates the operation status
    Flash Memory Store weeks of records if the device is out of cellular coverage. Storage capacity for over 2 weeks of 2-minute logging.
    Speed and Heading Current speed and heading are reported with each position update
    Onboard Temperature The device reports internal temperature, which provides an indication of ambient temperature.

    Smarts

    Adaptive Tracking Configure parameters to send updates based on set time intervals or when movement occurs.
    Adaptive tracking technology detects when the device is moving and increases the update rate,
    providing detail when you need it while conserving battery when stationary.
    Battery Life Monitoring ‘Battery Low’ and ‘Battery Critical’ alert levels
    Impact Detection Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold
    Magnetic Activation A magnetic switch activates the unit, meaning SIM cards and batteries can be pre-installed, and deployment can be simplified.
    Geofence Alerts The server can use device location to create geofences and alerts if an asset enters or leaves designated locations.
    Run Hour Monitoring Capture run hours based on movement to understand and optimise asset utilisation.
    Sleep Mode Stationary devices enter sleep mode until movement occurs to conserve battery life and optimise data usage.
    Tamper Detection Magnetic switch provides an alert if the device is removed from your asset
    Theft Recovery Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
    Tip Detection Define a range of angles that constitutes a ‘tipped’ state and configure alerts.

    Security Data

    Data Security Military-level AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.

    Manufacturer's Warranty

    Manufacturer’s Warranty Two-year manufacturer’s warranty.
  • Tracking Device for indoor/outdoor locations
