Home / All GPS Tracking Devices / SAFT LSH20 3.6V 13AH Specialised Lithium Battery
Saft LSH 20 3.6V 13000mAh
Lithium Batteries Saft LSH 20
Saft LSH20 High Rate D size Battery Specialised Lithium Battery
Saft LSH 20 3.6V 13000mAh
Lithium Batteries Saft LSH 20
Saft LSH20 High Rate D size Battery Specialised Lithium Battery

SAFT LSH20 3.6V 13AH Specialised Lithium Battery

$65.00$80.00
shop GPS Tracker Perth  shop gps tracker queensland  shop gps tracker melbourne

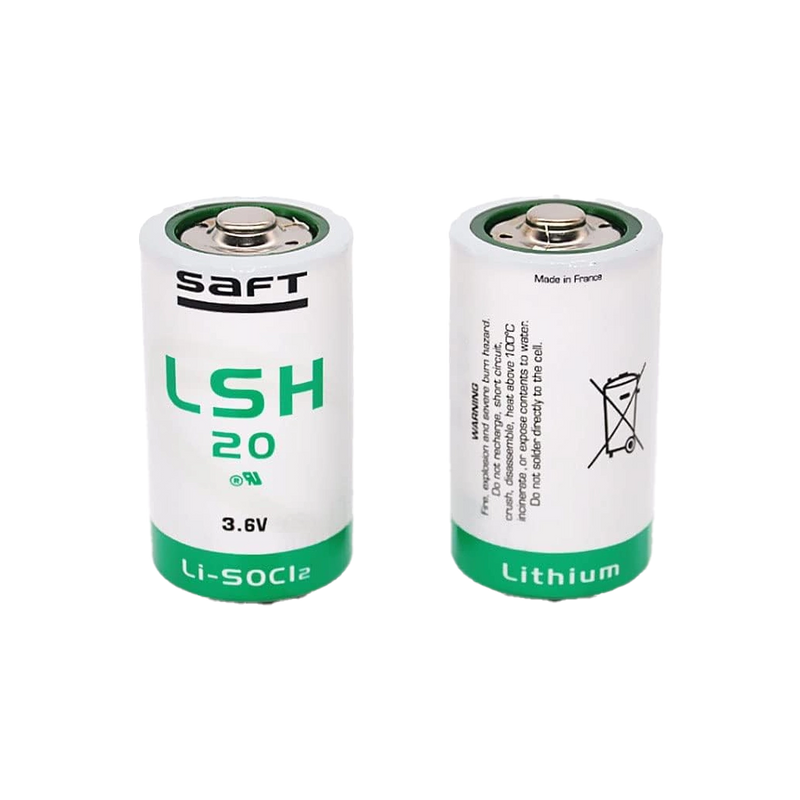

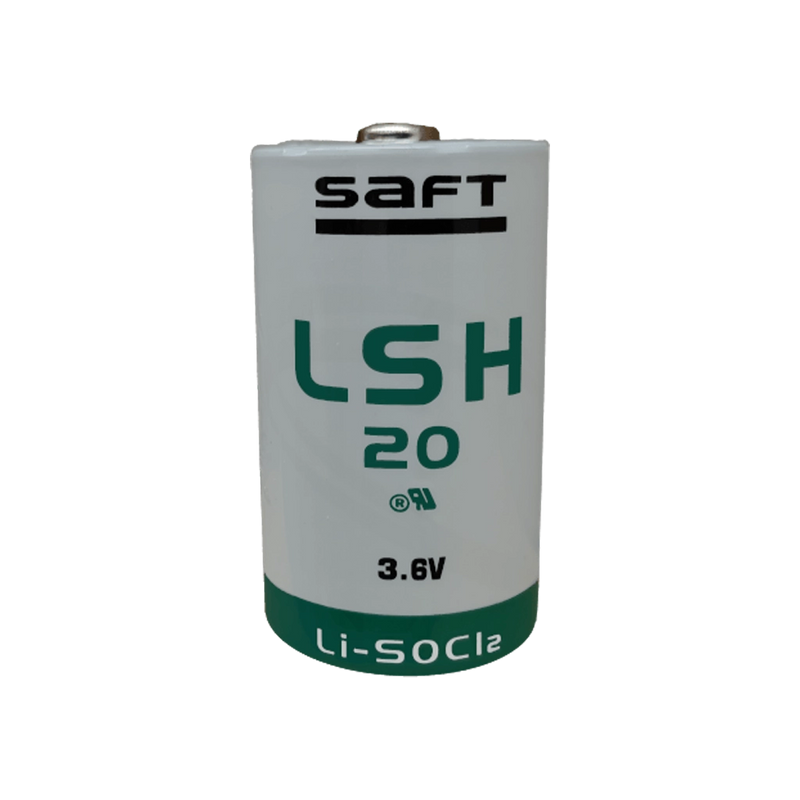

Saft LSH20 Lithium 3.6V 13Ah Battery

  • Saft LSH20 High Rate D size Battery Specialised Lithium Battery Cylindrical Cell - Spiral Wound Type

    Saft’s LSH cylindrical primary lithium cells are all based on Lithium-Thionyl chloride (Li-SOCl2) chemistry, which perfectly suits the high-energy and high-voltage requirements of the Remora3 long-life GPS Tracker in a wide range of temperatures.

    Built for the Remora3 Battery-Powered GPS Tracker.

    Spiral LSH cells are designed for long-term applications (2 to 10+ years), and we recommend them for the Remora3 battery-powered GPS tracker, featuring low background currents and periodic pulses (typically in the 50 mA to 2 A range) and applications requiring continuous currents from 0.1 A to 1.8 A.

    Long-life GPS Tracker Battery Replacement

    The LSH range has a spiral construction and includes specific models that can operate at high temperatures in mining, oil and gas applications, for example. The cells are designed for applications requiring pulses as high as 4 A.

    Key features:

    • Built-in safety vent
    • Finishing top with 5 A fuse
    • Hermetic construction with a glass-to-metal seal
    • Stainless steel can
    • Non-flammable electrolyte
    • RoHS and REACH compliance
    • Made in France

    Designed to meet all major quality, safety and environmental standards

    •Safety: UL 1642, IEC 60086-4
    • Transport: UN 3090 and UN 3091
    • Quality: ISO 9001, Saft Excellence System, continuous program

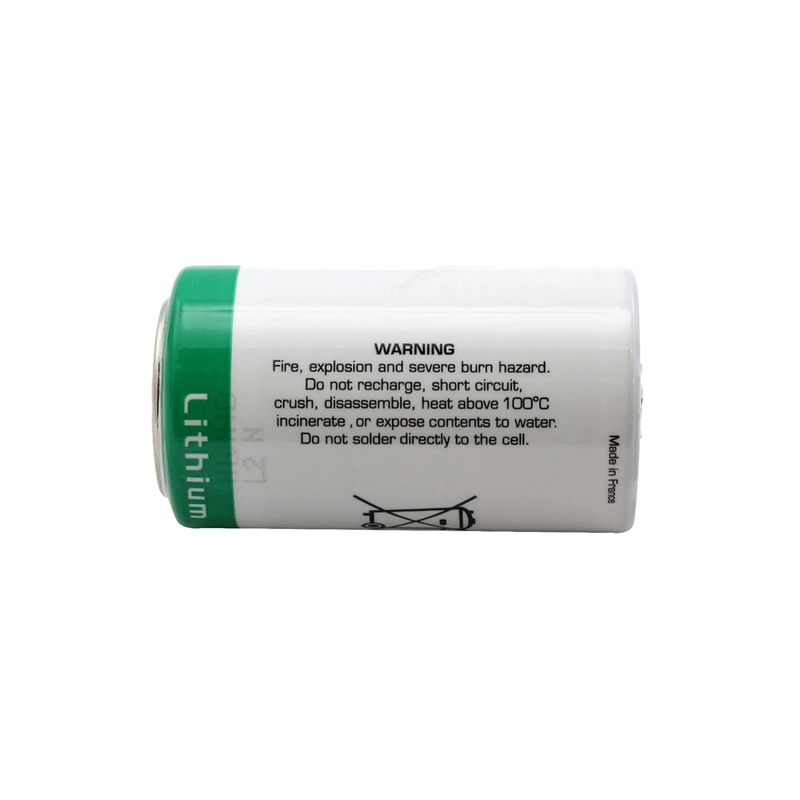

    Warnings:

    • Fire, explosion and severe burn hazard.
    • Do not recharge, short circuit, crush, disassemble, heat above 100°C (212°F), incinerate, or expose contents to water.
    • Do not solder directly to the cell (use tabbed cell versions instead).
    • Do not remove the cells from their original packing before use.
    • Do not store the cells in bulk to avoid accidental short-circuiting.
    • Do not mix new and used cells or cells from different origins.
    • Mind the polarities of the cell.


    Please note these are Primary batteries, which means they are NOT RECHARGEABLE. Never attempt to charge them.

    Shipping Restrictions Apply

    Due to IATA and airline regulations, this item may only be shipped by surface road freight.

    UN3090 Fully Declared Class 9 Dangerous Goods Lithium Metal Batteries

  • Saft LSH 20 Battery Specifications


    Electrical Characteristics

    Nominal capacity (under 14 mA, +20°C, 2.0 V cut-off) 13.5Ah
    Open circuit voltage (at +20°C) 3.67 V
    Nominal voltage (at 2 mA, + 20°C) 3.6V
    Nominal energy 47 Wh
    Pulse capability4 Up to 4 A
    Maximum recommended continuous current 1.8 A

    Operating conditions

    Operating temperature range -60°C / +85°C
    Storage temperatures (max recommended) +30°C

    Physical characteristics

    Diameter (max) 33.26 mm
    Height (max) 61.31 mm
    Typical weight 100 g
    Li metal content approx. 3.8 g

  • Download the Saft LSH20 Data Sheet
